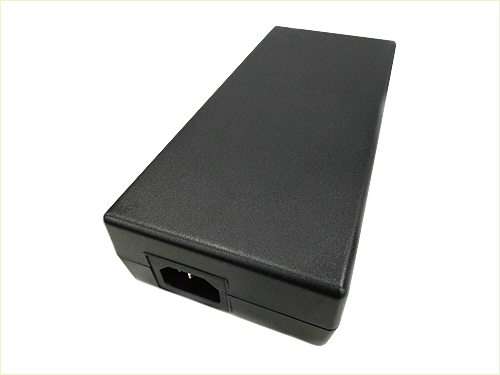

Adaptor – A1M0-1

220W Single Output

Features
  • Universal AC input / Full range
  • Class I Power (with earth pin)
  • Protections
    • Over Current Protection
    • Over Voltage Protection
    • Output Short Protection
  • 1 year warranty
  • Safety Preparation Application : UL, CB, CE, FCC

Model List

MODEL OUTPUT EFFICIENCY
A1M0-1120F00X 12V 15A Level VI
A1M0-1190B60X 19V 11.57A Level VI
A1M0-1240920X 24V 9.16A Level VI
A1M0-1480460X 48V 4.58A Level VI
A1M0-1560390X 56V 3.93A Level VI

Plug series



General Specification

SERIES NO. A1M0-1 A1M0-2
Dimension (L*W*H)(mm) 197*88*44.5
Plug / Inlet series C6, C14
AC input voltage range 90~264 VAC / 50/60Hz
Withstand voltage I/P – O/P:3KVAC, 1minute
Working temperature 0~40°C @ 100% load
Safety standards IEC 60950-1, EN 60950-1 IEC 62368-1, EN 62368-1 IEC 60601-1, EN60601-1 (Medical)
EMC standards EN55022-B, FCC part 15 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 EN55011-B, FCC part 15 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
