Project Description

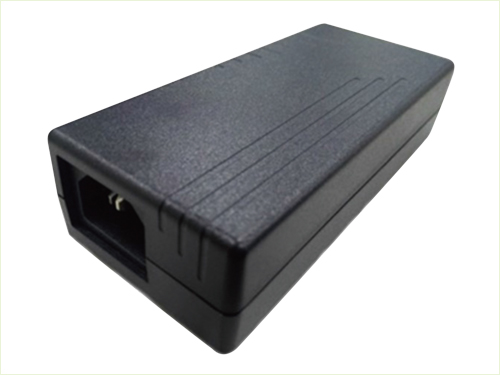

Adaptor – A160-1

60W Single Output

Features
  • Universal AC input / Full range
  • Class I Power (without earth pin)
  • Protections
    • Over Current Protection
    • Over Voltage Protection
    • Output Short Protection
  • 1 year warranty
  • Safety Approval : UL, CB, CE, FCC

Model List

MODEL OUTPUT EFFICIENCY
A160-1120400X 12V 4A Level VI
A160-1120500X 12V 5A Level VI
A160-1190320X 19V 3.15A Level VI
A160-1240250X 24V 2.5A Level VI

Plug series



General Specification

SERIES NO. A160-1 A160-3
Dimension (L*W*H)(mm) 133*59*33.5
Plug series C6, C14
AC input voltage range 90~264 VAC / 50/60Hz
Withstand voltage I/P – O/P:3KVAC, 1minute
Working temperature 0~40°C @ 100% load, 50°C @ 70% load
Safety standards UL60950-1, CSA 22.2, IEC 60950-1, EN 60950-1 IEC 60601-1, EN60601-1 (Medical)
EMC standards EN55022-B, FCC part 15 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 EN55011-B, FCC part 15 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
