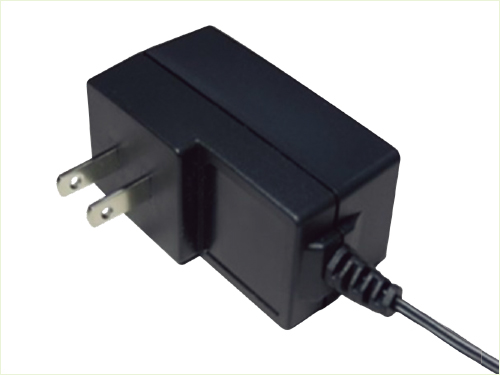

Adaptor – A112-1

12W Single Output

Features
  • Universal AC input / Full range
  • Class II Power (without earth pin)
  • Protections
    • Over Current Protection
    • Over Voltage Protection
    • Output Short Protection
  • 1 year warranty
  • Safety Approval : UL, CB, CE, FCC

Model List

MODEL OUTPUT EFFICIENCY
A112-1120103X 12V 1A Level VI

Plug series



General Specification

SERIES NO. A112-1 A106-2
Dimension (L*W*H)(mm) 68*33*42.7 73*35*46
Plug series USA/EUROPE/UK/CHINA/AUSTRALIA/INDIA/ KOREA/SOUTH AFRICA/BRAZIL/ARGENTINA USA/EUROPE/UK/CHINA/AUSTRALIA/BRAZIL/ INDIA/KOREA
AC input voltage range 90~264 VAC / 50/60Hz
Withstand voltage I/P – O/P:3KVAC, 1minute
Working temperature 0~40°C @ 100% load, 50°C @ 70% load
Safety standards UL60950-1, CSA 22.2, IEC 60950-1, EN 60950-1
EMC standards EN55022-B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, FCC part 15 class B
