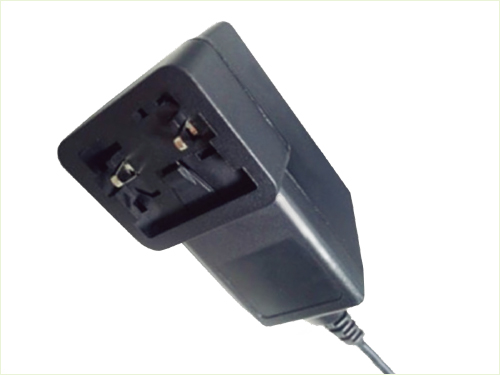

Adaptor – A124-1
24W Single Output
- Universal AC input / Full range
- Class II Power (without earth pin)
- Protections
- Over Current Protection
- Over Voltage Protection
- Output Short Protection
- 1 year warranty
- Safety Approval : UL, CB, CE, FCC
Plug Of Interchangeable
Model List
| MODEL | OUTPUT | EFFICIENCY |
| A124-1120205X | 12V 2A | Level VI |
Plug series
General Specification
| SERIES NO. | A124-1 | A124-2 | A124-3 |
| Dimension (L*W*H) (mm) | 73*35*46 | 73*35*46 | 68*33*42.7 |
| Plug series | USA/EUROPE/UK/CHINA/ AUSTRALIA/KOREA | USA/EUROPE/UK/CHINA/ AUSTRALIA/INDIA/BRAZIL | C6, C8, C14 |
| AC input voltage range | 90~264 VAC / 50/60Hz | ||
| Withstand voltage | I/P – O/P：3KVAC, 1minute | ||
| Working temperature | 0~40°C @ 100% load, 50°C @ 70% load | ||
| Safety standards | UL60950-1, CSA 22.2, IEC 60950-1, EN 60950-1 | ||
| EMC standards | EN55022-B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, FCC part 15 class B | ||
