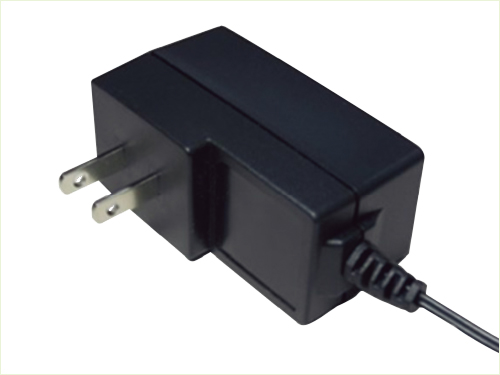

Adaptor – A106-2

6W Single Output

Features
  • Universal AC input / Full range
  • Class II Power (without earth pin)
  • Protections
    • Over Current Protection
    • Over Voltage Protection
    • Output Short Protection
  • 1 year warranty
  • Safety Approval : UL, CB, CE, FCC

Model List

MODEL OUTPUT EFFICIENCY
A106-2050103X 5V 1A Level VI
A106-2050123X 5V 1.2A Level VI
A106-2059103X 5.9V 1A Level VI
A106-2120053X 12V 0.5A Level VI

Plug series



General Specification

SERIES NO. A106-1 A106-2
Dimension (L*W*H)(mm) 73*31*42.5 68*33*39
Plug series USA/EUROPE/UK/CHINA/AUSTRALIA/BRAZIL USA/EUROPE/UK/CHINA/AUSTRALIA/INDIA/KOREA/SOUTH AFRICA/BRAZIL/ARGENTINA
AC input voltage range 90~264 VAC / 50/60Hz
Withstand voltage I/P – O/P:3KVAC, 1minute
Working temperature 0~40°C @ 100% load, 50°C @ 70% load
Safety standards UL60950-1, CSA 22.2, IEC 60950-1, EN 60950-1
EMC standards EN55022-B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, FCC part 15 class B
