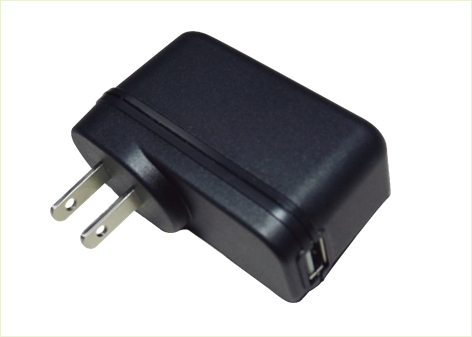

Adaptor – A106-1
6W Single Output
- Universal AC input / Full range
- Class II Power (without earth pin)
- Protections
- Over Current Protection
- Over Voltage Protection
- Output Short Protection
- 1 year warranty
- Safety Approval : UL, CB, CE, FCC,RCM
Model List
| MODEL | OUTPUT | EFFICIENCY |
| A106-1050101X | 5V 1A | Level VI |
| A106-1050121X | 5V 1.2A | Level VI |
| A106-105010DU | 5V 1A | Level VI |
Plug series
General Specification
| SERIES NO. | A106-1 | A106-2 |
| Dimension (L*W*H)(mm) | 73*31*42.5 | 68*33*39 |
| Plug series | USA/EUROPE/UK/CHINA/AUSTRALIA/BRAZIL | USA/EUROPE/UK/CHINA/AUSTRALIA/INDIA/KOREA/SOUTH AFRICA/BRAZIL/ARGENTINA |
| AC input voltage range | 90~264 VAC / 50/60Hz | |
| Withstand voltage | I/P – O/P：3KVAC, 1minute | |
| Working temperature | 0~40°C @ 100% load, 50°C @ 70% load | |
| Safety standards | UL60950-1, CSA 22.2, IEC 60950-1, EN 60950-1 | |
| EMC standards | EN55022-B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, FCC part 15 class B | |
